This machine, specifically designed for tube cutting, showcases its adaptability and relevance in various industries, including furniture, display racks, construction, and sports equipment manufacturing, highlighting its wide applicability.
| Specifications | Light | Heavy | ||
| Model | T16560 | T23060 | M35060 | M650120 |
| Scope of pipe processing | 10-160mm | 10-230mm | 20-350mm | 40-630mm |
| Maximum machining length | 6100mm | |||
| Maximum speed of ABC axis | 110r/min | |||
| X-axis idling speed | 50m/min | |||
| Maximum acceleration | 1.0G | |||
| Maximum load of single chuck | 120kg | 300kg | 900kg | 1200kg |
| Loading length | 6000mm-12000m | |||
| Tail length | ≥50mm-100mm | |||
| Laser power option | 1000w-12000w | |||
The machine bed for the laser cutting machine is constructed with high-strength pipe materials, welded and then subjected to high-temperature annealing and secondary vibration aging to remove internal stresses. This ensures the bed’s high strength, precision, and durability, making it ideal for the demands of laser cutting. The design and testing protocols adhere to strict standards to guarantee stable and consistent long-term operation.
Our laser cutting machines are built on a foundation of strength and precision. The robust machine bed, engineered from high-strength materials, is perfected through advanced thermal and aging processes to deliver unwavering accuracy and endurance. Experience relentless performance with our laser cutting machines, designed to excel in precision and last through the toughest workloads, ensuring your craftsmanship stands the test of time.

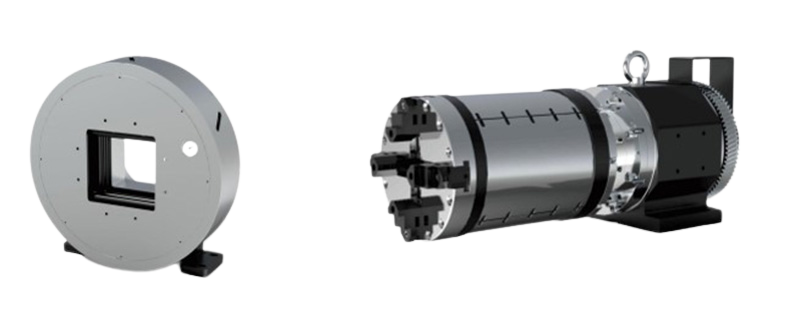

Precision: Ensures accurate and consistent cuts by securely holding materials in place.
Versatility: Adaptable to various materials, including different pipes and profiles.
Diverse Types: Offers a range of chuck types for specific cutting requirements.
Productivity: Enhances efficiency, especially in processing heavy and long tubes.

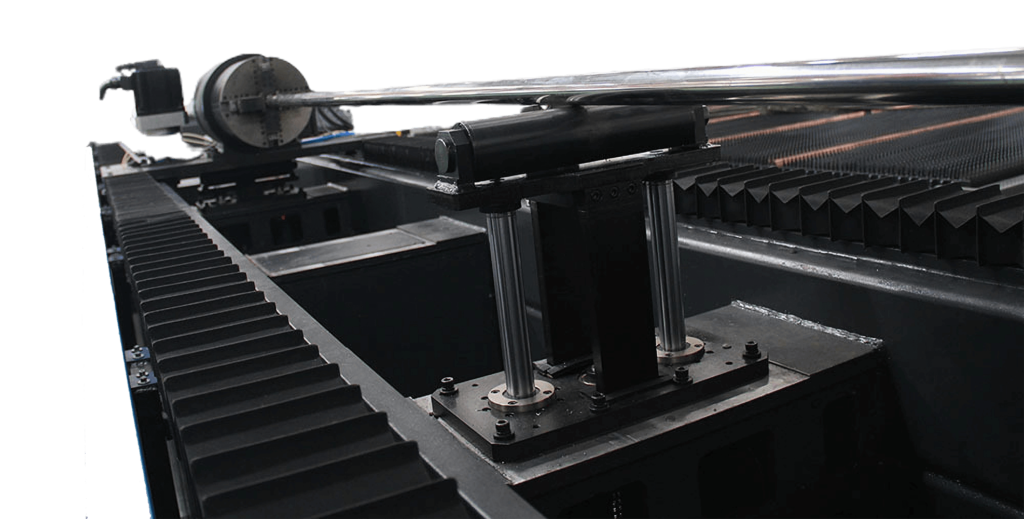

The auxiliary support device for large-diameter pipe processing in laser tube cutting machines is designed to enhance precision and stability during the cutting process. It addresses the issue of pipe material wobbling at high speeds, ensuring rotational accuracy during cutting. The device also plays a guiding and supporting role during the feeding process.
The machine features precision-engineered gears and racks with fine cutting and grinding treatments, ensuring ultra-high matching precision and smooth, quiet rotation. Its compact load-driven structure effectively reduces driving torque and vibration. Additionally, the machine employs a dual-drive gantry movement system, achieving higher acceleration and faster movement speeds.
Elevate your machining precision with our cutting-edge system, boasting finely crafted gears for ultra-smooth operations. Minimized vibration and noise enhance your working environment, while the compact design boosts efficiency. Experience unparalleled speed and agility with our advanced dual-drive system, designed to deliver rapid movement and superior acceleration, propelling your productivity to new heights.
